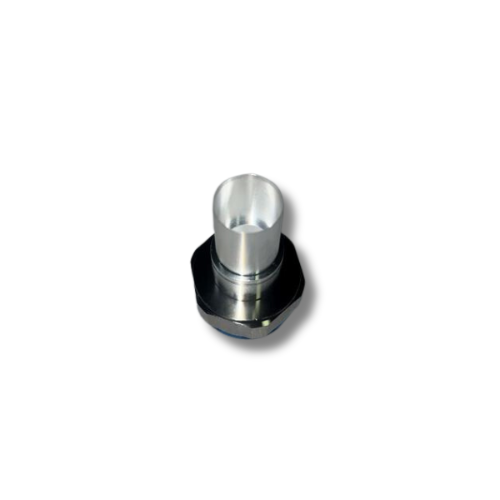

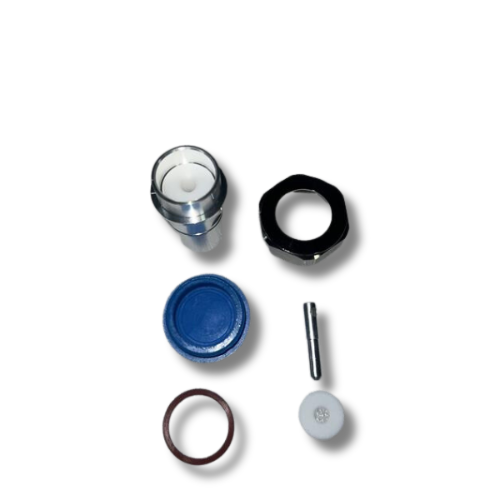

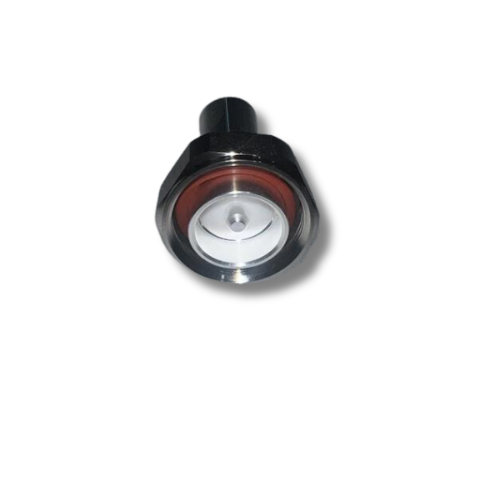

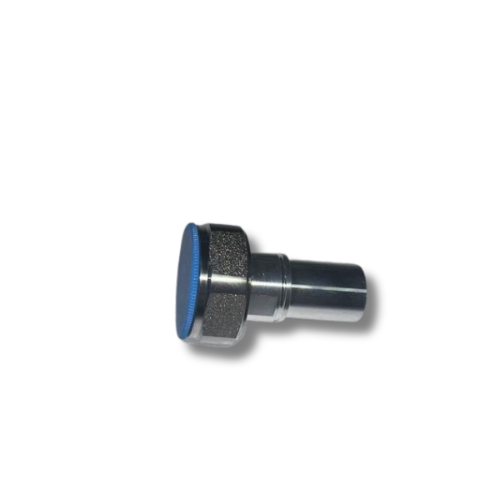

7/16 DIN male solder center solder body connector for 1/2" regular flexible annular cable 123-1-50 or equivalent. This connector is factory installed onto any other manufacturers 1/2" flexible cable including Commscope LDF4-50, and RFS LCF12-50J-P7.
| CROSS REFERENCE | |
| Alternative To | RFD-1601C-H1 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Spring bronze with trimetal plating |
| Options | Solder Type |
| Outer Conductor | Brass |
| Connector A | 7/16 Din |
7/16 DIN male solder center solder body connector for 1/2" Standard Flexible Cable | 123-1DMS | 123e.com
- Brand: 123eWireless
- Product Code: 123-1DMS
- Availability: Stock: 1569
-
$19.00
