123-142SMAMRS

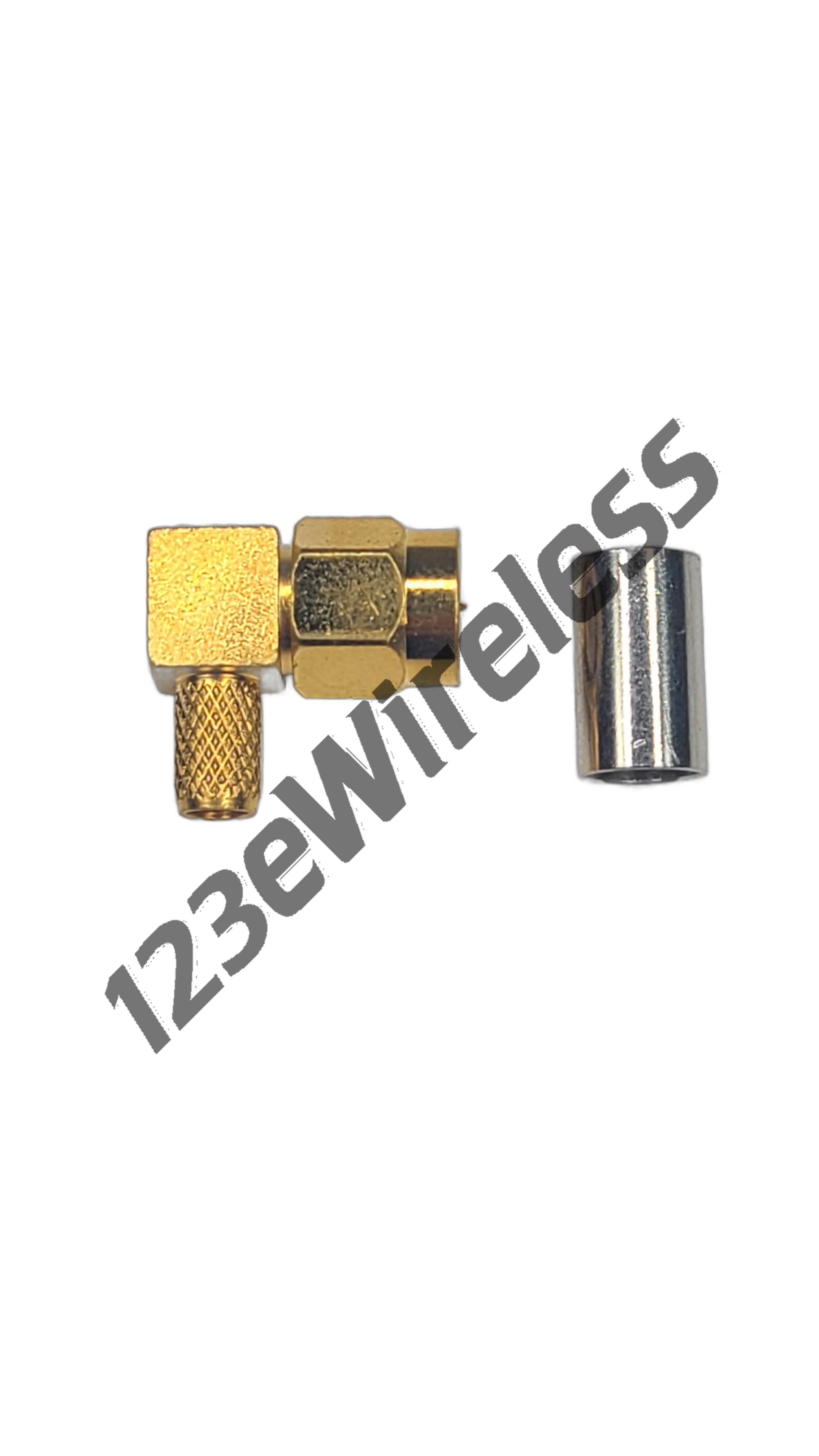

RG-142 - SMA Male - Right Angle - Solder Center Crimp Outer connector
Indoor RF interconnect
Stock to 28 days
$14.00
Premier · per ea
Sign in to see your contracted tier pricing — or call (949) 888-5548 for volume pricing.
Details
The 123-142SMAMRS is a SMA Male Right Angle connector for RG-142 cable, with solder termination.
Why this part
Engineered for durable, reliable RF interconnect.
Electrical
Required to build assembly| Impedance (Ω) | 50 |
|---|---|
| Frequency range | DC-12.4 GHz (flexible) / DC-18 GHz (semi-rigid) |
| VSWR ≤ 3 GHz | 1.15 |
| VSWR ≤ 6 GHz | 1.2 |
| Insertion loss coefficient | 0.06 |
Mechanical
| Mate style | threaded |
|---|---|
| Coupling torque | 5.2 in-lb max (4 in-lb recommended) |
| Mating cycles | ≥ 100 |
| IP rating | IP44 standard / IP67 sealed variants |
Materials
| Body | Plated brass / Cu-Sn-Zn ternary (White Bronze / Albaloy) |
|---|---|
| Governing standard | MIL-C-39012 / MIL-C-83517 / IEC 61169-15 |
