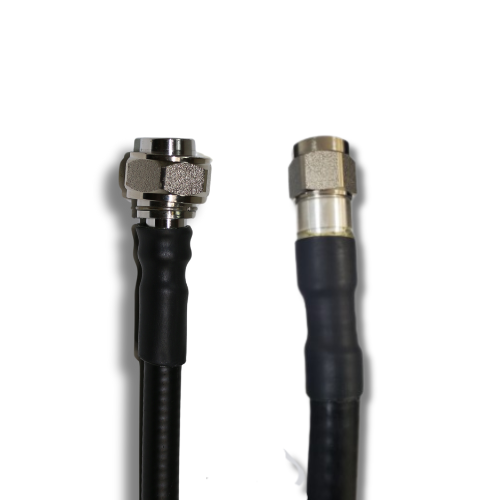

4.3-10 Male to N Male welded onto 3/8" Super Flex cable, Low PIM factory-made jumper. 123eWireless factory-made assemblies are optimized to produce low passive third-order inter-modulation. Each jumper is dynamically PIM tested to IEC 62037 standards, certified to guarantee performance, and averages -165dBc. MADE in the USA.
| CROSS REFERENCE | |
| Alternative To | |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | Max 10.2 GHz |
| Impedance | 50±2 Ohm |
| Peak Power | 13.2 kW |
| PIM | -165 dBc IEC 62037 |
| Return Loss | -30 db |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to +85°C |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Inner Conductor | Copper-Clad Aluminum 1.90mm (0.075in) |
| Insulation | Physically Foamed PE 4.70mm (0.185in) |
| Maximum Bending Radius | 2.00" |
| Outer Conductor | Helically Corrugated Copper 6.40mm (0.252in) |
| Connector A | 4.3-10 Male |
| Connector B | N Male |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
3/8" Super Flex 4.3-10 Male to N Male Low PIM Jumper |123-38SFHMNM |123e.com
- Brand: 123eWireless
- Product Code: 123-38SFHMNM-XX-P
- Availability: 1 Week
3/8" Super Flex 4.3-10 (M) to N (M) Low PIM Jumper
-
$0.00
