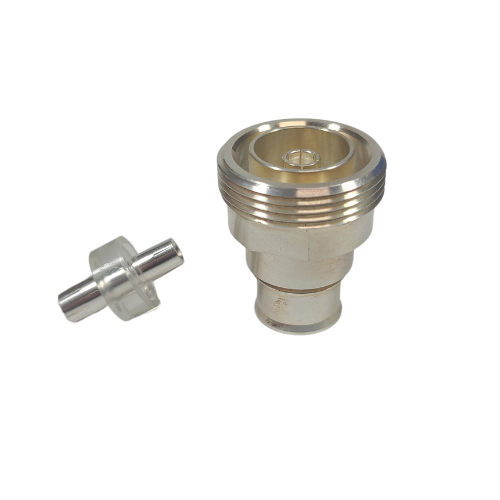

7/16 DIN female solder center solder body connector for 1/2" regular flexible annular cable 123-1-50 or equivalent. This connector is factory installed onto any other manufacturers 1/2" flexible cable including Commscope LDF4-50, and RFS LCF12-50J-P7.
| CROSS REFERENCE | |
| Alternative To | |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.08 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -45°C to ~+85°C |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Inner Conductor | Spring Copper Plating Ag>5μm |
| Options | Solder Type |
| Outer Conductor | Brass Plating Ag>5μm |
| Connector A | 7/16 Din |
7/16 DIN female solder center solder body connector for 1/2" Standard Flexible Cable | 123-1DFS | 123e.com
- Brand: 123eWireless
- Product Code: 123-1DFS
- Availability: Stock: 415
-
$13.00
