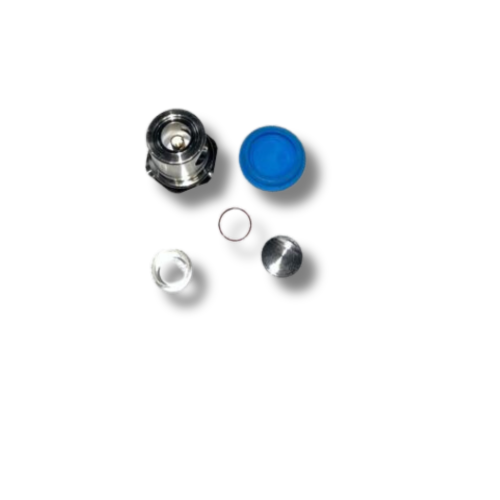

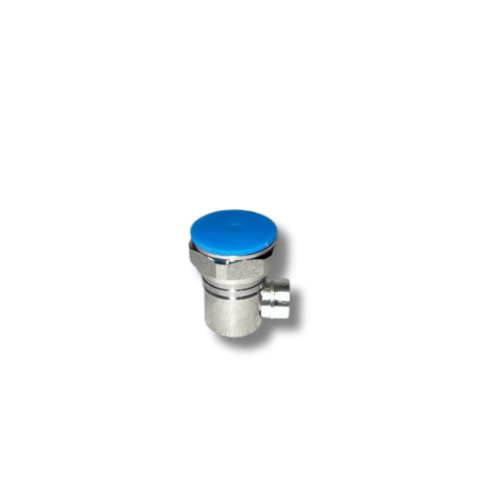

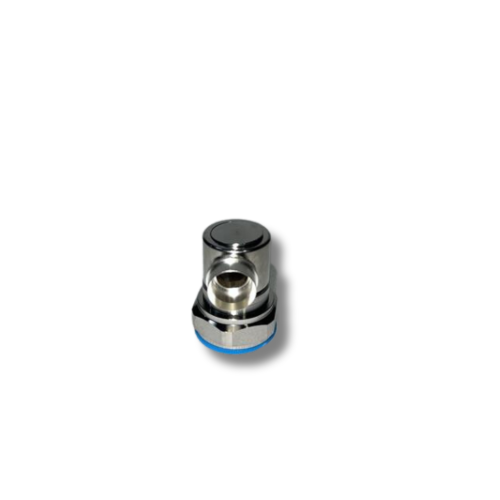

This 7/16 DIN male right-angle connector with a solder center body is designed to provide a reliable and secure connection for flexible cable applications. Featuring a solder-type center, it is ideal for use with 1/2" regular flexible annular cables such as the 123-1-50 model or equivalent cables. This connector is also factory-installed on cables from other manufacturers, including Commscope LDF4-50 and RFS LCF12-50J-P7, ensuring versatility and compatibility for a wide range of industrial and telecommunications applications.
- 7/16 DIN male right angle connector, ideal for installations in tight spaces.
- Solder center body ensuring a secure, high-performance connection.
- Compatible with 1/2" flexible annular cables, such as the 123-1-50 model and other equivalent cables.
- Factory installation available for flexible cables from other manufacturers, including Commscope LDF4-50 and RFS LCF12-50J-P7.
- Perfect for telecommunications and transmission systems requiring high-quality, reliable connections.
| CROSS REFERENCE | |
| Alternative To | |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| Insertion Loss | <0.05 |
| PIM | < -160 dBc |
| VSWR | < 1.10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Brass plating Ag5um |
| Insulation | PTFE |
| Options | Solder Type |
| Outer Conductor | Brass plating Copper-tin-zin 2um |
| Connector A | 7/16 Din |
7/16 DIN male Right Angle solder center solder body connector for 1/2" Standard Flexible Cable | 123-1DMRS | 123e.com
- Brand: 123eWireless
- Product Code: 123-1DMRS
- Availability: Stock: 1195
-
$21.00
