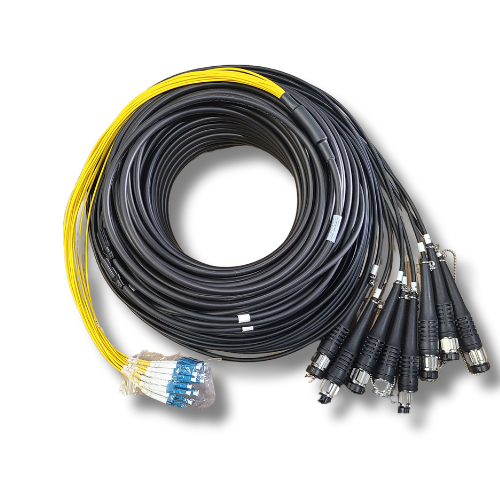

ARMORED 16 Fiber LC/UPC to ODC/RFX Male SM 16 fiber round distribution indoor/outdoor jumper Designed for Ericsson base station functionality for typical interconnection between RRU and BBU. CPRI, LTE, and 5G ready.
| CROSS REFERENCE | |
| Alternative To | |
| ATTENUATION | |
| Attenuation @ 1550nm | 0.25 dB/km |
| Attenuation @ 1310nm | 0.40 dB/km |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | < 0.5 dB |
| Return Loss | >50 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +70°C |
| Varmint Rating | Stainless steel armored tube |
| PHYSICAL SPECIFICATIONS | |
| Connector A | ODC/RFX Male |
| Connector B | LC/UPC Duplex |
| Fiber Count | 16 |
| Breakout Length Side A | 20IN |
| Breakout Length Side B | 8IN |
| Furcation | 2 mm |
| Fiber Type | G652D MM62.5/125 G657 |
| Jacket Color | Black |
| Jacket Material | |
| Outer Diameter | 5.0 mm ±0.2 |
Armored ODC/RFX Male - LC/UPC Clipped 16F, Single Mode | 123-F4X16-1A4F7-XXF-PS | 123e.com
- Brand: 123eWireless
- Product Code: 123-F4X16-1A4F7-XXF-PS
- Availability: 3 Weeks
Armored ODC/RFX (M) - LC/UPC Clipped 16F, Single Mode
