N (M) to N (F) 1 dB 5 Watts Attenuator Fixed attenuators are used to lower voltage, dissipate power, and to improve impedance matching.
- Wide Frequency Band DC-6GHz
- 2G/3G/4G/LTE Coverage
- Low VSWR
- Widely used for In-building Solutions
| CROSS REFERENCE | |
| Alternative To | |
| PHYSICAL SPECIFICATIONS | |
| Connector A | N Male |
| Connector B | N Female |
| ELECTRICAL SPECIFICATIONS | |
| Attenuation | 1 ±0.5 |
| Average Power | 5 W |
| Impedance | 50 ohm |
| VSWR | ≤1.25 |
| Frequency Range | DC-6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -30C ~+65C |

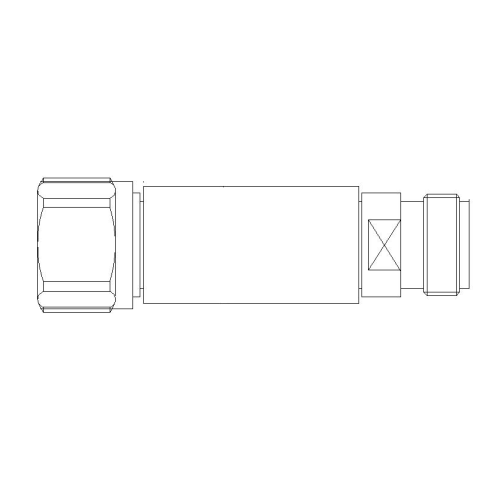

N Male to N Female 1dB 5 Watts Attenuator | 123-N1DB5W | 123e.com
- Product Code: 123-N1DB5W
- Availability: 3 Weeks
-
$73.00
This product has a minimum quantity of 10
