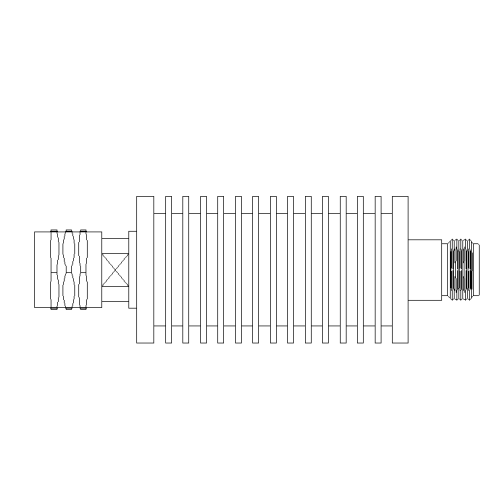

N (M) to N (F) 30dB 25 Watts Attenuator Fixed attenuators are used to lower voltage, dissipate power, and to improve impedance matching.
◆ Wide Frequency Band DC 6GHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In building Solutions
| CROSS REFERENCE | |
| Alternative To | |
| ELECTRICAL SPECIFICATIONS | |
| Attenuation | 30 ±0.5 |
| Average Power | 25 W |
| Frequency Range | DC-6GHz |
| Impedance | 50 ohm |
| VSWR | ≤1.30 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -30C ~+65C |
| PHYSICAL SPECIFICATIONS | |
| Connector A | N Male |
| Connector B | N Female |
N Male to N Female 30dB 25 Watts Attenuator | 123-N30DB25W | 123e.com
- Product Code: 123-N30DB25W
- Availability: 3 Weeks
N Male to N Female 30dB 25 Watts Attenuator
This product has a minimum quantity of 5
