RF Cable Assembly
123-142NMNM-01M-A
RG-142 Armored, 1 m, N-Type Male Straight to N-Type Male Straight
Public-safety LTE · 4G/5G FR1 (sub-3 GHz)
Stock to 7 days
$53.37
Premier · per ea
Log in to see your company’s contract price — or call (949) 888-5548 for volume pricing.
Details

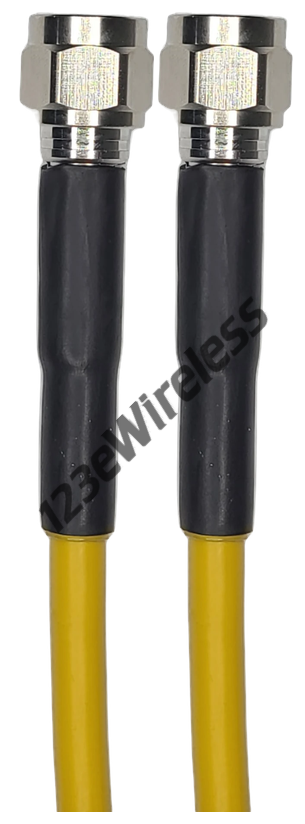

The 123-142NMNM-01M-A is a RG-142 RF cable assembly with a N-Type Male Straight connector on one end and a N-Type Male Straight connector on the other, terminated at 1 m. The RG-142 cable supports operation up to 6 GHz.
Both connectors are factory-soldered for repeatable VSWR and reliable mechanical performance. The full length is armored: a yellow PVC outer jacket over a stainless steel braid with an internal stainless steel coil, for crush and abrasion protection.
Suited for indoor and outdoor RF applications across the operating frequency range.
Both connectors are factory-soldered for repeatable VSWR and reliable mechanical performance. The full length is armored: a yellow PVC outer jacket over a stainless steel braid with an internal stainless steel coil, for crush and abrasion protection.
Suited for indoor and outdoor RF applications across the operating frequency range.
Why this part
Factory-built RG-142 RF cable assembly, 1 m, engineered for durable, reliable RF interconnect.
Electrical Performance
Required to build assembly| Nominal Impedance (Ω) | 50 |
|---|---|
| Frequency Range | DC – 6 GHz |
| VSWR ≤ 3 GHz | ≤ 1.12 |
| RL ≤ 3 GHz (dB) | ≥ 25 |
| VSWR ≤ 6 GHz | ≤ 1.25 |
| RL ≤ 6 GHz (dB) | ≥ 19 |
| Insertion Loss | not published (RG-142 — frozen OFF at save time) |
| Proof Voltage (DC) (V) | 1900 |
Connector
| Connector 1 (End A) | N-Type Male, Straight, Solder |
|---|---|
| Connector 2 (End B) | N-Type Male, Straight, Solder |
Cable
| Cable Family / Trim Code | RG-142 |
|---|---|
| Cable OD — Overall | 0.193 in / 4.90 mm |
| Armored Jacket | Yellow PVC outer jacket over stainless steel braid with internal stainless steel coil — full length |
| Armor — Color / OD | Yellow · OD 0.346 in (8.8 mm) over RG-142 |
Mechanical
| Assembly Length | 1 m |
|---|
Environmental
| Thermal Shock — IEC 60068-2-14, Test Na | Compliant — IEC 60068-2-14 Test Na, -40 to +85 °C, 5 cycles |
|---|---|
| Vibration — IEC 60068-2-6, Test Fc | Compliant — IEC 60068-2-6 Test Fc, 10–2000 Hz, 5 g, 3 axes |
| Shock — IEC 60068-2-27 | Compliant — IEC 60068-2-27, half-sine 100 g for 6 ms, 3 axes |
| Weather Standard — IEC 60068-1 | IEC 60068 -40/+85/21d |
| IP / Sealing Rating | IP67 mated |
References
| Legacy Part Number | 123-ARG142NMNM-01M |
|---|
