123-401QHMRS

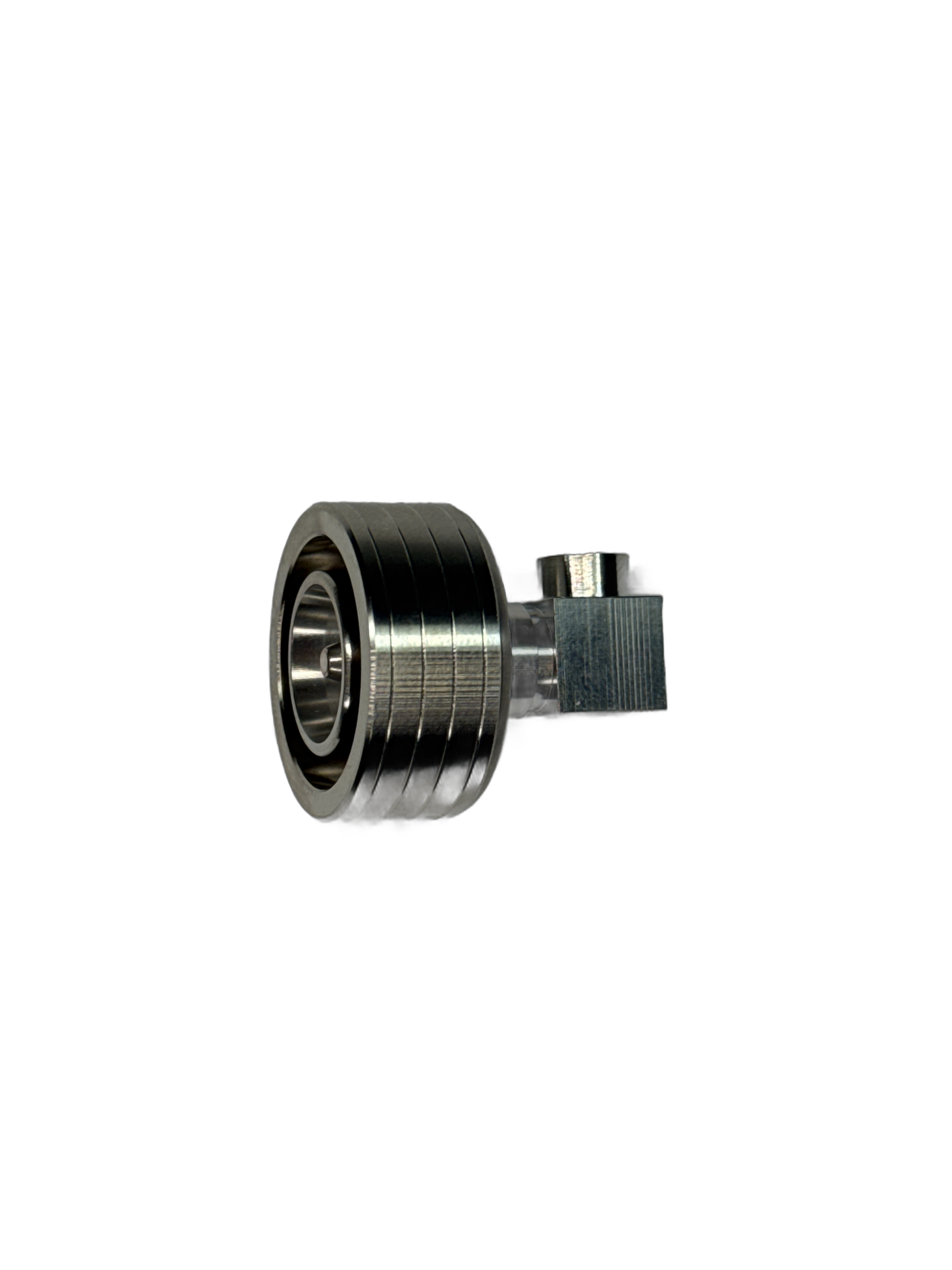

Quick-Disconnect 4.3-10 Male Right Angle Solder connector for FF401
Indoor RF interconnect
29 · Available
Stock to 28 days
$17.50
Premier · per ea
Sign in to see your contracted tier pricing — or call (949) 888-5548 for volume pricing.
Details
The 123-401QHMRS is a Quick-Disconnect 4.3-10 Male Right Angle connector for FF401 cable, with solder termination.
Push-pull engagement skips the torque step of the 4.3-10 threaded variant — mate or de-mate without a torque wrench, with an audible click confirming engagement. Suited to dense panel layouts where rotation clearance is restricted, and to field-service kits where install time matters.
Factory-solder terminated for repeatable mechanical assembly and consistent contact performance across re-mate cycles.
Push-pull engagement skips the torque step of the 4.3-10 threaded variant — mate or de-mate without a torque wrench, with an audible click confirming engagement. Suited to dense panel layouts where rotation clearance is restricted, and to field-service kits where install time matters.
Factory-solder terminated for repeatable mechanical assembly and consistent contact performance across re-mate cycles.
Why this part
Push-pull Quick-Disconnect 4.3-10 Male Right Angle connector for FF401 — engineered for fast field mate without a torque wrench, with reliable contact across re-mate cycles.
Electrical Characteristics
Required to build assembly| Nominal Impedance (Ω) | 50 |
|---|---|
| Frequency Range | DC-6 GHz |
| VSWR, ≤ 3 GHz | ≤ 1.032 |
| VSWR, ≤ 6 GHz | ≤ 1.050 |
| PIM (2×43 dBm) (dBc) | ≤ -166 |
| Insertion Loss Coefficient (× √F GHz) (dB) | ≤ 0.040 |
| Insulation Resistance, min (MΩ) | ≥ 5000 |
| Proof Voltage (V) | 2500 |
Mechanical Characteristics
| Interface | 4.3-10 |
|---|---|
| Gender | Male |
| Orientation | Right Angle |
| Mate Style / Interface Engagement | Threaded |
| Cable Type | FF401 |
Materials & Finishes
| Body / Outer Conductor — Material | Brass |
|---|---|
| Body / Plating | Cu-Sn-Zn ternary (White Bronze / Albaloy) |
| Pin / Inner Conductor — Material | Brass |
| Pin / Plating | Cu-Sn-Zn ternary (White Bronze / Albaloy) |
| Gasket / O-Ring | Silicone |
Mechanical
| Coupling Torque (Nm) | 5.0 |
|---|---|
| Mating Cycles, min (cycles) | ≥ 100 |
Environmental
| Operating Temperature Range (°C) | -55 to +90 |
|---|---|
| Thermal Shock — IEC 60068-2-14, Test Na | Compliant — IEC 60068-2-14 Test Na, -40 to +85 °C, 5 cycles |
| Vibration — IEC 60068-2-6, Test Fc | Compliant — IEC 60068-2-6 Test Fc, 10–2000 Hz, 5 g, 3 axes |
| Shock — IEC 60068-2-27 | Compliant — IEC 60068-2-27, half-sine 100 g for 6 ms, 3 axes |
| Weather Standard — IEC 60068-1 | IEC 60068 -40/+85/21d |
| IP / Sealing Rating | IP67 mated (IP68 overmolded) |
References
| Legacy Part Number | 123-14FFHMRS-QD |
|---|
