123-DMNM

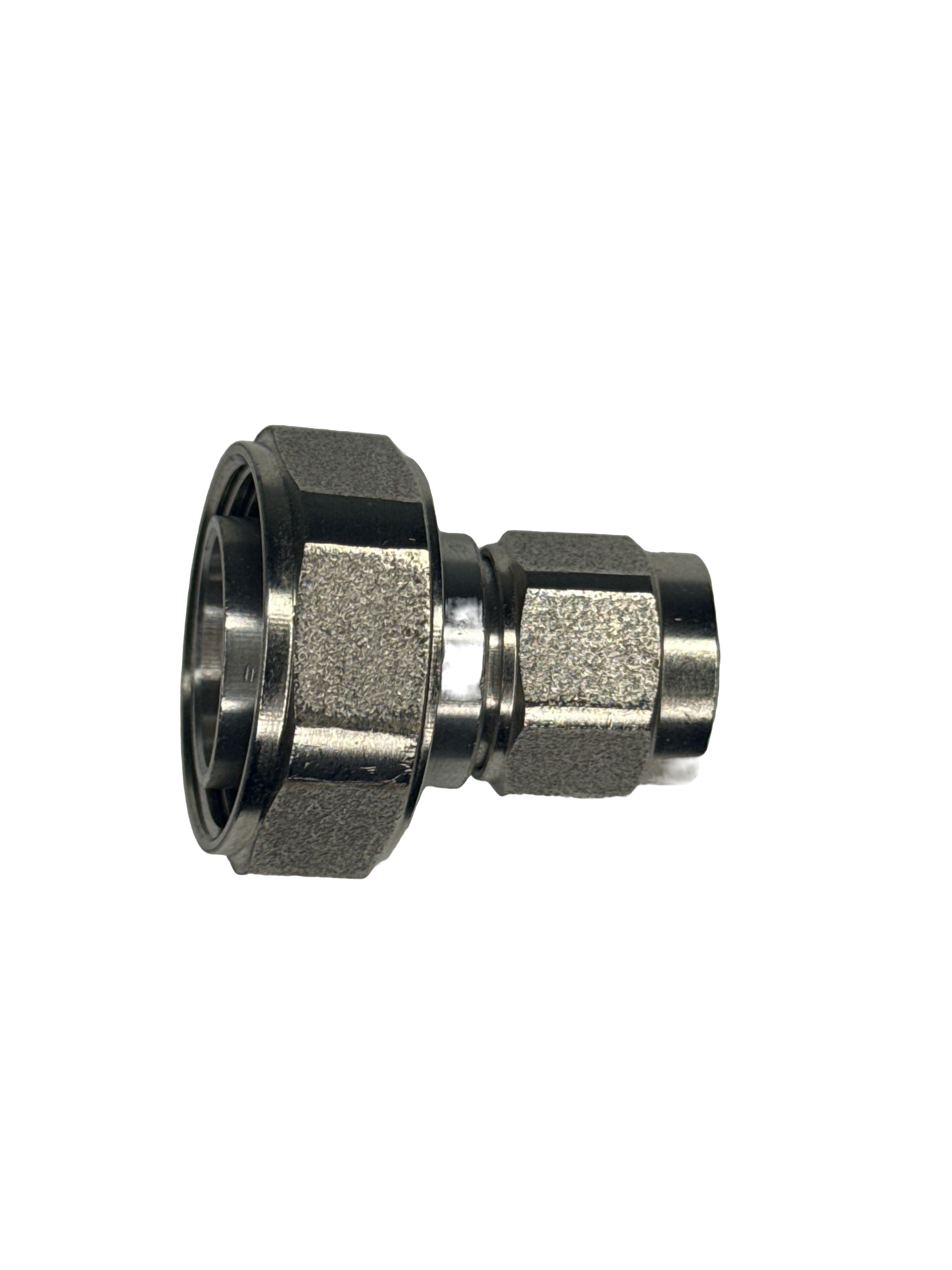

7/16 DIN Male Straight to N-Type Male Straight adapter
Test bench transitions · Antenna inter-mating · Public-safety LTE · 4G/5G FR1 (sub-3 GHz) · 5G mid-band
19 · Available
Stock to 28 days
$12.86
Premier · per ea
Sign in to see your contracted tier pricing — or call (949) 888-5548 for volume pricing.
Details
The 123-DMNM is a 7/16 DIN Male Straight to N-Type Male Straight RF adapter. Operates DC to 7.5 GHz. 50 Ω characteristic impedance.
Factory-built for repeatable performance across the operating band.
Suited for test bench transitions, antenna system inter-mating, and field service kits.
Factory-built for repeatable performance across the operating band.
Suited for test bench transitions, antenna system inter-mating, and field service kits.
Why this part
Precision 7/16 DIN Male Straight to N-Type Male Straight RF adapter — factory-built for repeatable VSWR across the operating band.
Physical Specifications
| Mating Cycles | ≥ 500 |
|---|---|
| Connector A | 7/16 DIN Male |
| Connector B | N-Type Male |
Electrical Specifications
Required to build assembly| Frequency Range | DC–7.5 GHz |
|---|---|
| Impedance (Ω) | 50 |
| Insertion Loss | ≤ 0.33 dB at 7.5 GHz |
| Return Loss | ≥ 20.8 dB (≤ 6 GHz) |
| VSWR | ≤ 1.15 (≤ 3 GHz), ≤ 1.20 (≤ 6 GHz) |
Environmental Specifications
| Operating Temperature (°C) | -55 to 85 |
|---|---|
| RoHS Compliance | Yes |
| Weather Standard | IP67 mated (IP68 overmolded) |
