RF Adapters
123-JFNM

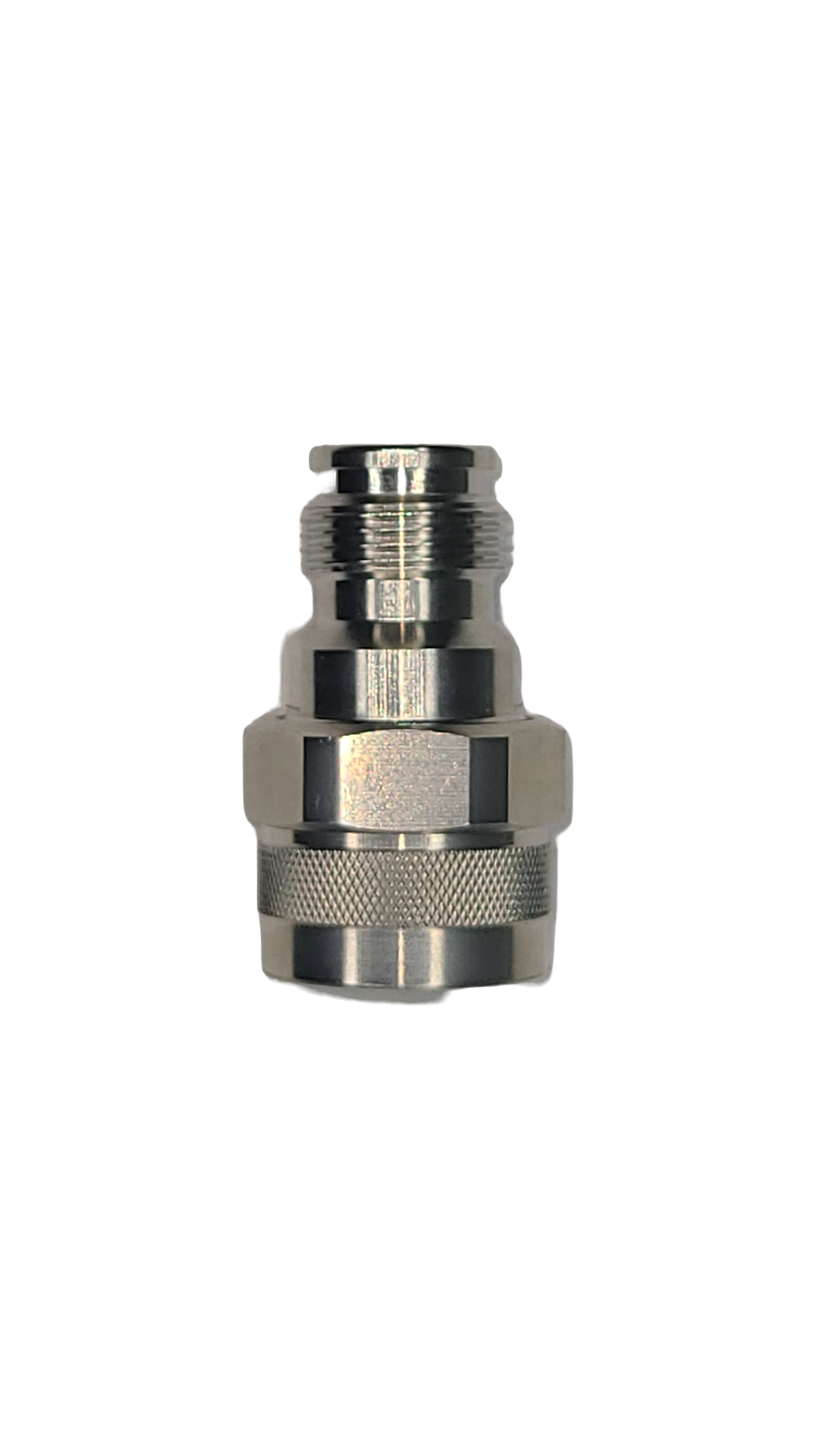

2.2-5 Female Straight to N-Type Male Straight adapter
Test bench transitions · Antenna inter-mating · Public-safety LTE · 4G/5G FR1 (sub-3 GHz)
1 · Available
Stock to 28 days
$36.30
Premier · per ea
Sign in to see your contracted tier pricing — or call (949) 888-5548 for volume pricing.
Details
The 123-JFNM is a 2.2-5 Female Straight to N-Type Male Straight RF adapter. Operates DC to 6 GHz. 50 Ω characteristic impedance.
Factory-built for repeatable performance across the operating band. Spec: VSWR ≤ 1.15.
Suited for test bench transitions, antenna system inter-mating, and field service kits.
Factory-built for repeatable performance across the operating band. Spec: VSWR ≤ 1.15.
Suited for test bench transitions, antenna system inter-mating, and field service kits.
Why this part
Precision 2.2-5 Female Straight to N-Type Male Straight RF adapter — factory-built for repeatable VSWR across the operating band.
Physical Specifications
| Mating Cycles | ≥ 100 |
|---|---|
| Connector A | 2.2-5 Female |
| Connector B | N-Type Male |
Electrical Specifications
Required to build assembly| Frequency Range | DC–6 GHz |
|---|---|
| Impedance (Ω) | 50 |
| Insertion Loss | ≤ 0.39 dB at 6 GHz |
| Return Loss | ≥ 20.8 dB (≤ 6 GHz) |
| VSWR | ≤ 1.15 (≤ 3 GHz), ≤ 1.20 (≤ 6 GHz) |
Environmental Specifications
| Operating Temperature (°C) | -40 to 85 |
|---|---|
| RoHS Compliance | Yes |
| Weather Standard | IP67 mated |
References
| Alternate Part Number | TA-JFNM, PE9797, AD-NP225J-1 |
|---|
