RF Terminator
123-JMT2-P
2.2-5 Male 2W Low PIM RF load terminator, 50 Ω
RF system load termination · Splitter/coupler unused-port termination
Stock to 28 days
$175.00
Premier · per ea
Log in to see your company’s contract price — or call (949) 888-5548 for volume pricing.
Details
The 123-JMT2-P is a 2 watt, 50-ohm RF load terminator with a 2.2-5 Male Straight connector. Operates DC to 6 GHz.
Engineered for dissipation across the operating band with stable impedance match. VSWR ≤ 1.35 across the operating band. Low-PIM verified per assembly.
Used to terminate unused RF ports on splitters, couplers, and DAS combiners during test and live operation. Environmental: operating temperature -30 to +65 °C.
Engineered for dissipation across the operating band with stable impedance match. VSWR ≤ 1.35 across the operating band. Low-PIM verified per assembly.
Used to terminate unused RF ports on splitters, couplers, and DAS combiners during test and live operation. Environmental: operating temperature -30 to +65 °C.
Why this part
Engineered 2 watt 50-ohm 2.2-5 Male Straight RF load terminator — stable impedance match for production and field service.

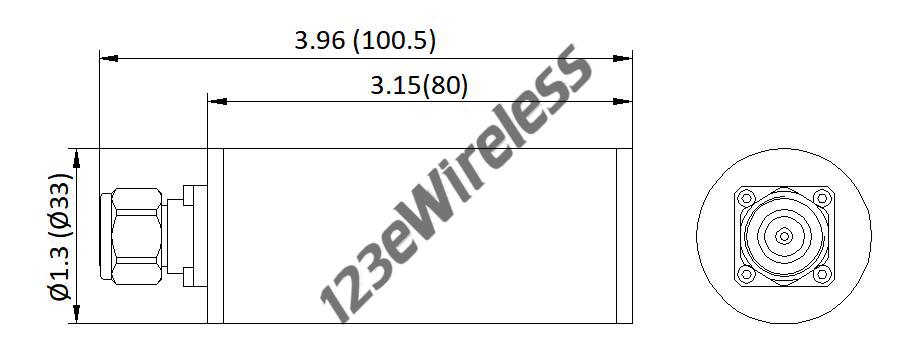

Physical Specifications
| Connector A | 2.2-5 |
|---|---|
| Gender | Male |
Electrical Specifications
Required to build assembly| Average Power (W) | 2 |
|---|---|
| Frequency Range | DC–6 GHz |
| Impedance (Ω) | 50 |
| VSWR | ≤ 1.35 |
| PIM (IM3) (dBc) | -156 |
Environmental Specifications
| Operating Temperature | -30 to +65 °C |
|---|
