123-RG316NFSB

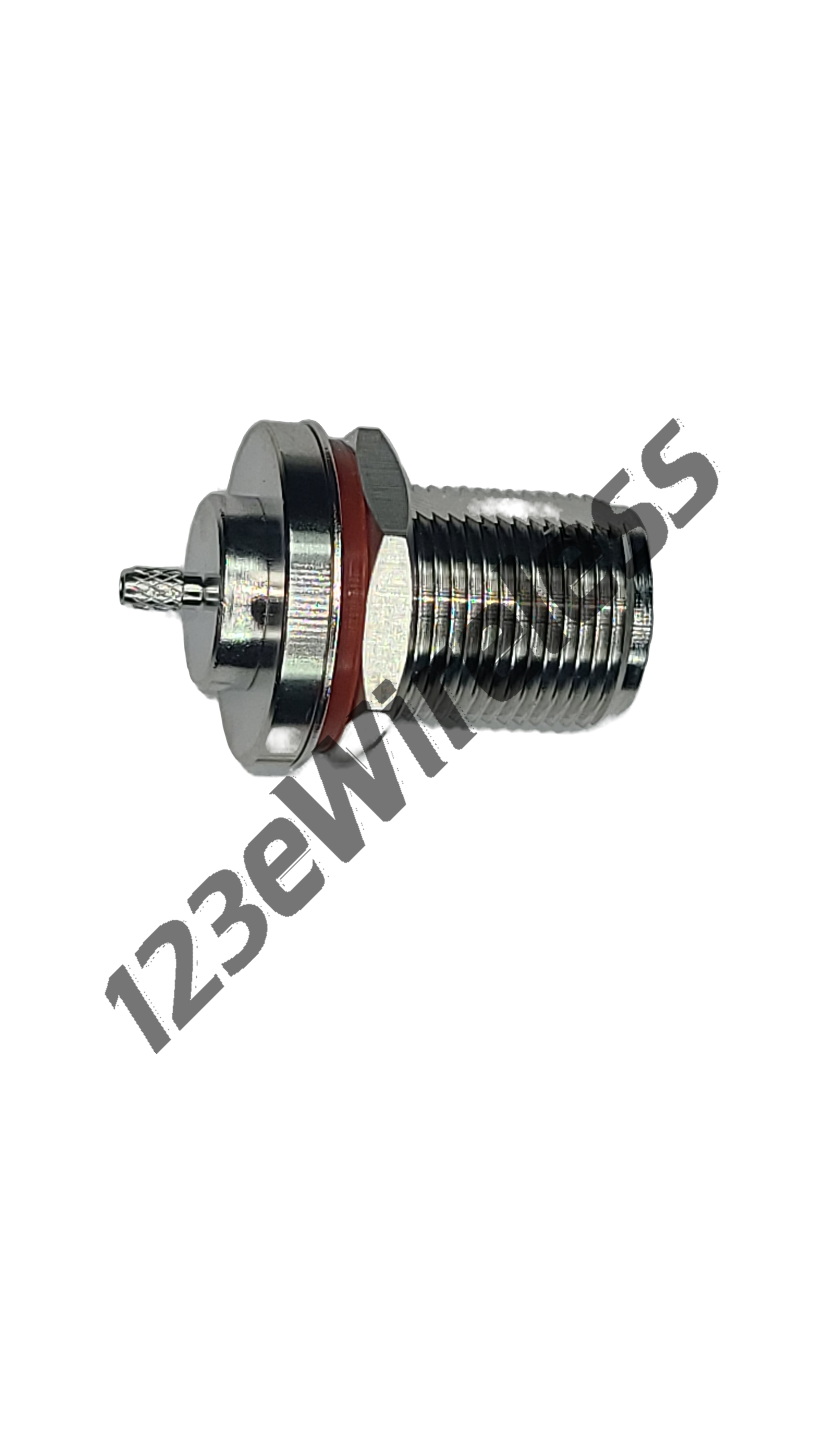

RG-316 - N-Type Female - Straight - Solder Center Crimp Outer - Bulkhead connector
Indoor RF interconnect
321 · Available
Stock to 28 days
$14.11
Premier · per ea
Sign in to see your contracted tier pricing — or call (949) 888-5548 for volume pricing.
Details
The 123-RG316NFSB is a Bulkhead N-Type Female Straight connector for RG-316 cable, with solder termination.
Threaded coupling with a defined torque specification ensures repeatable VSWR and reliable mechanical retention under vibration and thermal cycling.
Bulkhead-mount construction — the connector body passes through a chassis wall with a threaded nut securing it to the panel from the back side. Designed to maintain mating geometry and RF performance while transferring mechanical load to the chassis rather than the cable. Ideal for antenna pass-throughs, equipment enclosures, and field termination boxes where the connector face must present cleanly through a panel.
Threaded coupling with a defined torque specification ensures repeatable VSWR and reliable mechanical retention under vibration and thermal cycling.
Bulkhead-mount construction — the connector body passes through a chassis wall with a threaded nut securing it to the panel from the back side. Designed to maintain mating geometry and RF performance while transferring mechanical load to the chassis rather than the cable. Ideal for antenna pass-throughs, equipment enclosures, and field termination boxes where the connector face must present cleanly through a panel.
Why this part
N-Type Female Straight connector for RG-316 — engineered for durable, reliable RF interconnect with predictable contact (threaded) and long-term mating cycle reliability.
Electrical Characteristics
Required to build assembly| Nominal Impedance (Ω) | 50 |
|---|---|
| Frequency Range | DC-11 GHz (flexible) / DC-18 GHz (semi-rigid) |
| VSWR, ≤ 3 GHz | ≤ 1.150 |
| VSWR, ≤ 6 GHz | ≤ 1.200 |
| PIM (2×43 dBm) (dBc) | ≤ -160 |
| Insertion Loss Coefficient (× √F GHz) (dB) | ≤ 0.060 |
| Insulation Resistance, min (MΩ) | ≥ 5000 |
| Proof Voltage (V) | 1500 |
Mechanical Characteristics
| Interface | N-Type |
|---|---|
| Gender | Female |
| Orientation | Straight |
| Mate Style / Interface Engagement | Threaded |
| Cable Type | RG-316 |
Materials & Finishes
| Body / Outer Conductor — Material | Brass |
|---|---|
| Body / Plating | Cu-Sn-Zn ternary (White Bronze / Albaloy) |
| Pin / Inner Conductor — Material | Brass |
| Pin / Plating | Cu1Ni2Au (1 micron Cu / 2 micron Ni / 0.1 micron Au) |
| Gasket / O-Ring | Silicone |
Mechanical
| Coupling Torque (Nm) | 1.7 |
|---|---|
| Mating Cycles, min (cycles) | ≥ 500 |
Environmental
| Operating Temperature Range (°C) | -65 to +165 |
|---|---|
| Thermal Shock — IEC 60068-2-14, Test Na | Compliant — IEC 60068-2-14 Test Na, -40 to +85 °C, 5 cycles |
| Vibration — IEC 60068-2-6, Test Fc | Compliant — IEC 60068-2-6 Test Fc, 10–2000 Hz, 5 g, 3 axes |
| Shock — IEC 60068-2-27 | Compliant — IEC 60068-2-27, half-sine 100 g for 6 ms, 3 axes |
| Weather Standard — IEC 60068-1 | IEC 60068 -40/+85/21d |
| IP / Sealing Rating | IP67 mated |
References
| Alternate Part Number | 172129 |
|---|---|
| Legacy Part Number | 123-RG316NF |
