123-SMAFSMBF

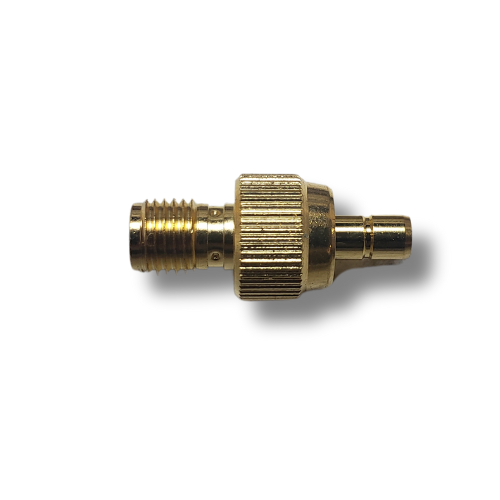

SMA Female Straight to SMB Female Straight adapter
Test bench transitions · Antenna inter-mating · Public-safety LTE · 4G/5G FR1 (sub-3 GHz)
7 · Available
Stock to 28 days
$24.03
Premier · per ea
Sign in to see your contracted tier pricing — or call (949) 888-5548 for volume pricing.
Details
The 123-SMAFSMBF is a SMA Female Straight to SMB Female Straight RF adapter. Operates DC to 4 GHz. 50 Ω characteristic impedance.
Factory-built for repeatable performance across the operating band. Spec: VSWR ≤ 1.1.
Suited for test bench transitions, antenna system inter-mating, and field service kits.
Factory-built for repeatable performance across the operating band. Spec: VSWR ≤ 1.1.
Suited for test bench transitions, antenna system inter-mating, and field service kits.
Why this part
Precision SMA Female Straight to SMB Female Straight RF adapter — factory-built for repeatable VSWR across the operating band.
Physical Specifications
| Mating Cycles | ≥ 100 |
|---|---|
| Connector A | SMA Female |
| Connector B | SMB Female |
Electrical Specifications
Required to build assembly| Frequency Range | DC–4 GHz |
|---|---|
| Impedance (Ω) | 50 |
| Insertion Loss | ≤ 0.24 dB at 4 GHz |
| Return Loss | ≥ 20.8 dB (≤ 6 GHz) |
| VSWR | ≤ 1.40 (≤ 3 GHz), ≤ 1.20 (≤ 6 GHz) |
Environmental Specifications
| Operating Temperature (°C) | -65 to 165 |
|---|---|
| RoHS Compliance | Yes |
| Weather Standard | Indoor |
References
| Alternate Part Number | SM2062, LCAD30009, 433112 |
|---|
