SMA (M) to SMA (F) 10 dB 2 Watts Attenuator. Fixed attenuators are used to lower voltage, dissipate power, and to improve impedance matching.
- Wide Frequency Band DC-6GHz
- 2G/3G/4G/LTE Coverage
- Low VSWR
- Widely used for In-building Solutions
| CROSS REFERENCE | |
| Alternative To | |
| ELECTRICAL SPECIFICATIONS | |
| Attenuation | 10dB ±1.0 |
| Average Power | 2 W |
| Frequency Range | DC-6GHz |
| Impedance | 50 ohm |
| VSWR | ≤1.25 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40C ~+80C |
| PHYSICAL SPECIFICATIONS | |
| Connector A | SMA Male |
| Connector B | SMA Female |

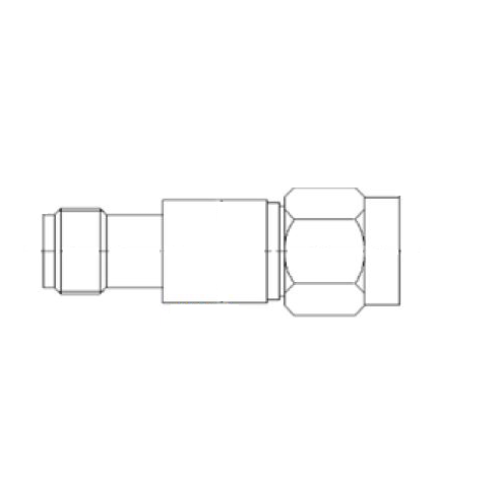

SMA Male to SMA Female 10dB 2 Watts Attenuator | 123-S10DB2W | 123e.com
- Product Code: 123-S10DB2W
- Availability: 3 Weeks
-
$28.00
This product has a minimum quantity of 5
