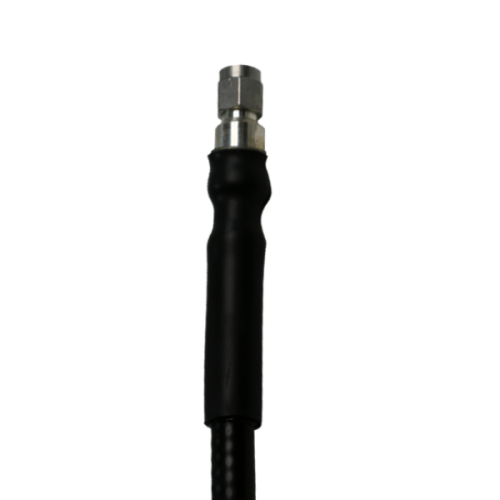

2.2-5 Male Solder Center Solder Body Connector
- Application: Connector for 1/4" Super flexible cable (model 123-14SF-50 or equivalent).
- Installation: This connector is factory-installed onto 1/4" super flexible cables from other manufacturers, including:
- Commscope
- FSJ1-50A
| CROSS REFERENCE | |
| Alternative To | |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Mating Cycles | >100 |
| Options | Solder Type |
| Outer Conductor | Brass Plating Ag>5μm |
| Connector A | 2.2-5 Male |
| Inner Conductor | Spring Copper Plating Ag>5μm |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.25 |
| Frequency Range | DC-6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to ~85°C |
| Weather Standard | IP68 |
2.2-5 Male Solder Type Connector for 1/4" SuperFlex & FlexForm Cable | 123-14SFJMS | 123e.com
- Brand: 123eWireless
- Product Code: 123-14SFJMS
- Availability: Stock: 115
2.2-5 (M) Solder Type Connector for 1/4" SF & FF Cable | 123-14SFJMS
-
$35.00
