1/4" Superflexible corrugated cable is ideal for Low PIM applications where cable flexibility is necessary. This General Purpose outdoor cable is ideally suited for SMALL CELL and DAS high-power applications connecting antennas and radios.
| CROSS REFERENCE | |
| Alternative To | FSJ1-50A, RLCX-SL014S, PE, SCF14-50J |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 0.4-3GHz |
| Impedance | 50 Ohm |
| Inner Construction | Copper-clad aluminum wire |
| PIM | -160 dBc |
| Return Loss | 0.4-3GHz ≤-23dB (VSWR 1.15) 3-4GHz ≤-21dB (VSWR 1.2) 4-6 GHz ≤-18dB (VSWR 1.29) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Insulation | Foamed PE |
| Outer Conductor | Helical corrugated copper tube |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
| Outer Diameter | 1/4" |

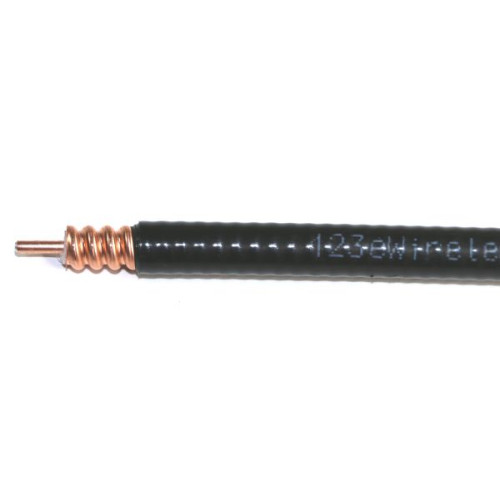

1/4" Superflexible Corrugated Cable | 123-14SF-50 | 123e.com
- Product Code: 123-14SF-50
- Availability: Stock: 400
-
$3.40
