The N Male Solder Center Solder Body Connector is designed for 1/4" super flexible cables, such as the 123-14SF-50 model or equivalent. This connector is factory-installed onto 1/4" super flexible cables from other manufacturers, including Commscope FSJ1-50A, providing a reliable and low-loss connection for high-performance RF applications. Its solder center and solder body construction ensure a stable and durable connection, ideal for demanding environments where signal integrity is crucial.
N Male Solder Center Solder Body Connector
- Application: Connector for 1/4" Super flexible cable (model 123-14SF-50 or equivalent).
- Installation: This connector is factory-installed onto 1/4" super flexible cables from other manufacturers, including:
- Commscope
- FSJ1-50A
| CROSS REFERENCE | |
| Alternative To | |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.3 @6Ghz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to ~85°C |
| RoHS Compliance | Yes |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Inner Conductor | Spring Copper Plating Ag>5μm |
| Mating Cycles | >100 |
| Options | Solder Type |
| Outer Conductor | Brass Plating Ag>5μm |
| Connector A | N Female |

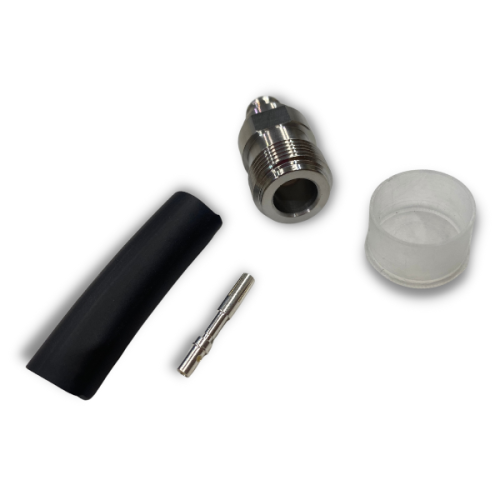

N Female solder center body connector for 1/4" Super Flexible Cable | 123-14SFNFS | 123e.com
- Brand: 123eWireless
- Product Code: 123-14SFNFS
- Availability: Stock: 137
-
$19.00
