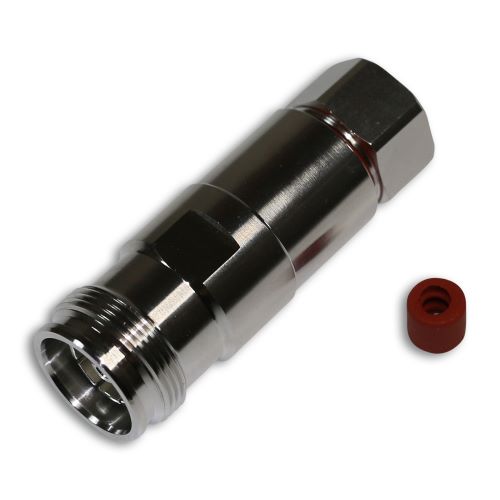

4.3-10 Female Solder Center Solder Body Connector
- Application: Connector for 1/4" Super flexible cable (model 123-14SF-50 or equivalent).
- Installation: This connector is factory-installed onto 1/4" super flexible cables from other manufacturers, including:
- Commscope
- FSJ1-50A
| CROSS REFERENCE | |
| Alternative To | |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Mating Cycles | >100 |
| Options | Solder Type |
| Outer Conductor | Brass Plating Ag>5μm |
| Connector A | 4.3-10 Female |
| Inner Conductor | Spring Copper Plating Ag>5μm |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.25 |
| Frequency Range | DC-6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to ~85°C |
| Weather Standard | IP68 |
4.3/10 Female Solder Type Connector for RG401 & 1/4" SF | 123-14SFHFS | 123e.com
- Brand: 123eWireless
- Product Code: 123-14SFHFS
- Availability: Stock: 75
4.3/10 (F) Solder Type Connector for RG401 & 1/4" SF | 123-14SFHFS
-
$15.00
