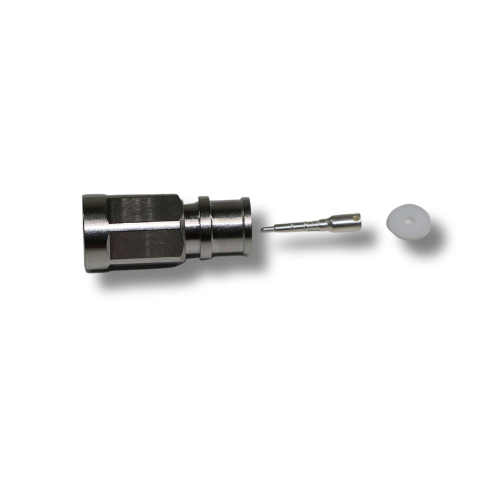

The 123-14SFXMS is a Nex10 male solder-center, solder-body connector designed for use with 1/4" SuperFlex and FlexForm (RG401) coaxial cables. It delivers reliable signal integrity from 0–6 GHz with 50-ohm impedance and Low PIM performance (<-155 dBc @ 700 MHz, <-163 dBc @ 1800 MHz), making it ideal for wireless infrastructure, DAS, and telecom applications.
Constructed with a silver-plated brass inner conductor, ternary alloy-plated brass body, silicone rubber gasket, and PTFE insulation, this connector is built for durability across an operating temperature range of -40°C to +155°C. Compatible with CommScope FSJ1-50A and equivalent 1/4" SF cables.
| PHYSICAL SPECIFICATIONS | |
| Options | Solder Type |
| Connector A | Nex10 |
| Gender | Male |
| Inner Conductor | Brass, Silver Plating |
| Outer Conductor | Beryllium-copper, Silver Plating |
| Body | Brass, Ternary alloy Plating |
| Gasket | Silicone Rubber |
| Insulation | PTFE |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 0-6GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | 0-3GHz < 1.15 3-6GHz < 1.30 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to ~155°C |
Nex10 Male solder center body connector for 1/4" Super Flexible Cable | 123-14SFXMS | 123e.com
- Brand: 123eWireless
- Product Code: 123-14SFXMS
- Availability: 126
-
$35.00
