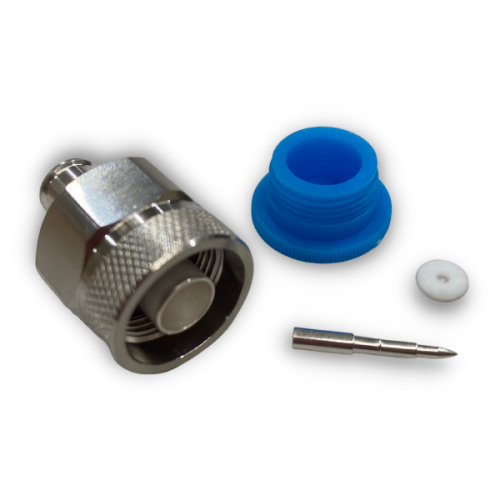

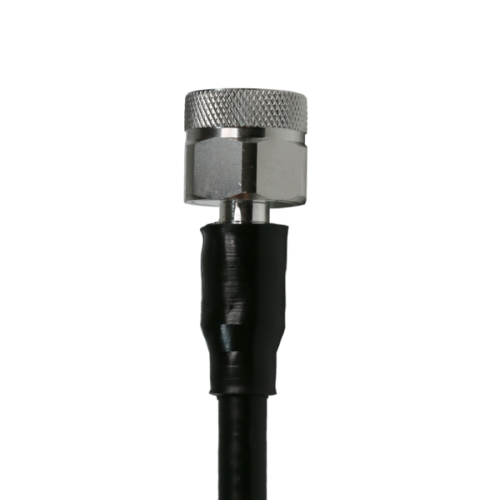

The 123-14SFNMS is a N male solder-center, solder-body connector designed for use with 1/4" SuperFlex and FlexForm (RG401) coaxial cables. It delivers reliable signal integrity from 0–6 GHz with 50-ohm impedance and Low PIM performance of <-160 dBc, making it ideal for wireless infrastructure, DAS, and telecom applications.
Constructed with a silver-plated brass inner conductor, ternary alloy-plated brass body, silicone rubber gasket, and PTFE insulation, this connector is built for durability across an operating temperature range of -40°C to +155°C. Compatible with CommScope FSJ1-50A and equivalent 1/4" SF cables.
| PHYSICAL SPECIFICATIONS | |
| Options | Solder Type |
| Connector A | N Male |
| Gender | Male |
| Inner Conductor | Brass, Silver Plating |
| Body | Brass, Ternary Alloy Plating |
| Insulation | PTFE |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 0-6GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | ≤1.15(0-3GHz) ≤1.3 (3-6GHz) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to 155°C |
| RoHS Compliance | Yes |
N Male solder center body connector for 1/4" Super Flexible Cable | 123-14SFNMS | 123e.com
- Brand: 123eWireless
- Product Code: 123-14SFNMS
- Availability: 167
-
$13.00
